Model 2600 - Service View

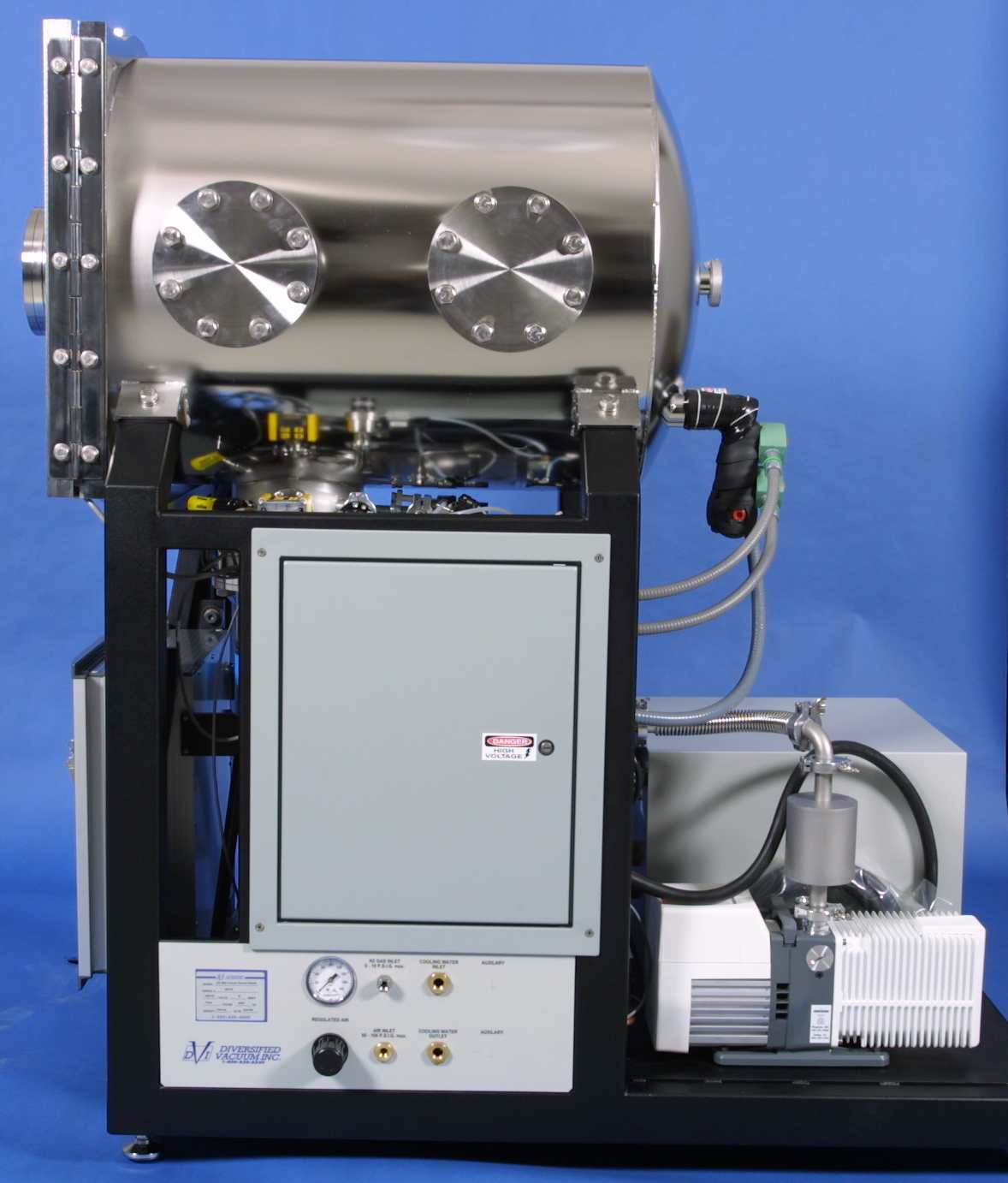

DVI Model 2600 Thermal Vacuum Test System - Service View

The right side of the Model 2600 features service ports, wiring enclosure, and two 6" (15.24 cm) I.D. access ports on the chamber.

Click here for the full-resolution image (828 KB).
